Anti-fog Crosslinked Film

Anti-fog Duration: Tested to maintain clear visibility for 72+ hours at 4°C without any water droplet formation

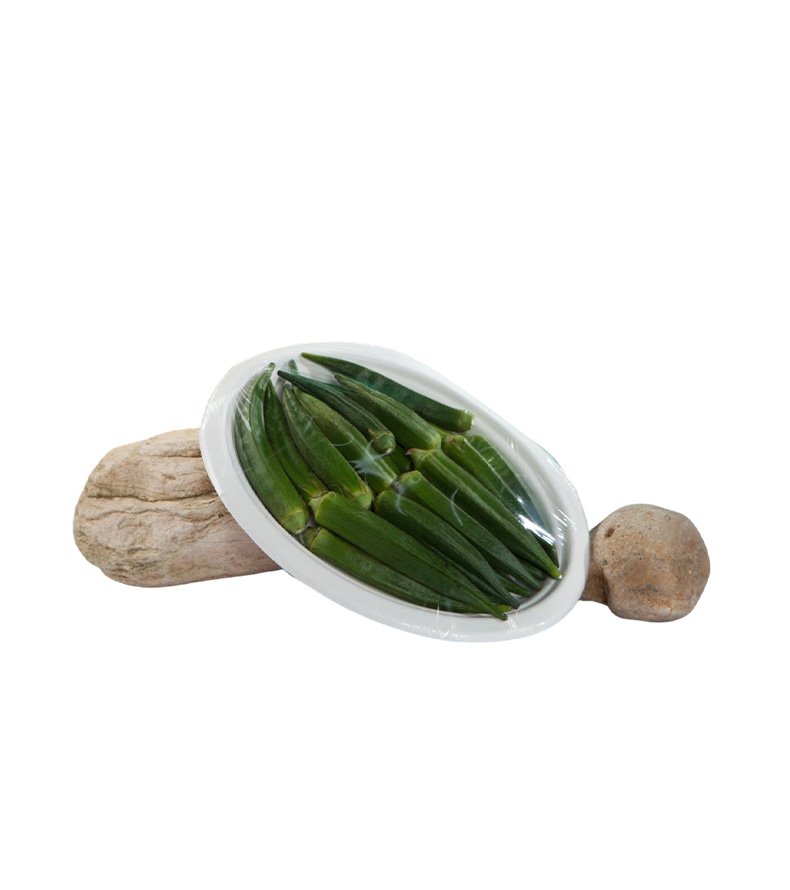

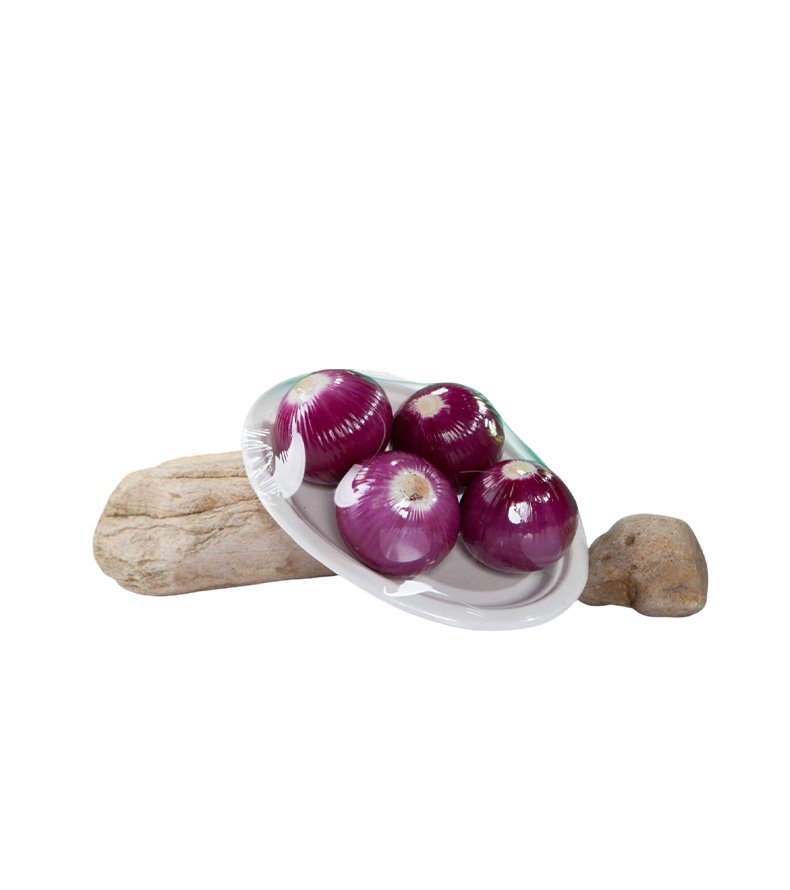

Puncture Resistance: Cross linked structure provides 30-40% higher puncture resistance than standard POF – ideal for produce with stems or sharp edges
Low Temperature Performance: Remains flexible and impact-resistant even at -50°C, suitable for frozen food and cold chain logistics
Seal Integrity: Consistent seal strength across all thicknesses, ensuring package integrity during transport and handling

Material: Anti-fog Cross linked polyolefin (POF)

Cross Linking Method : Electron beam irradiation

Thickness : 11μm, 15μm, 19μm, 25μm (customizable)

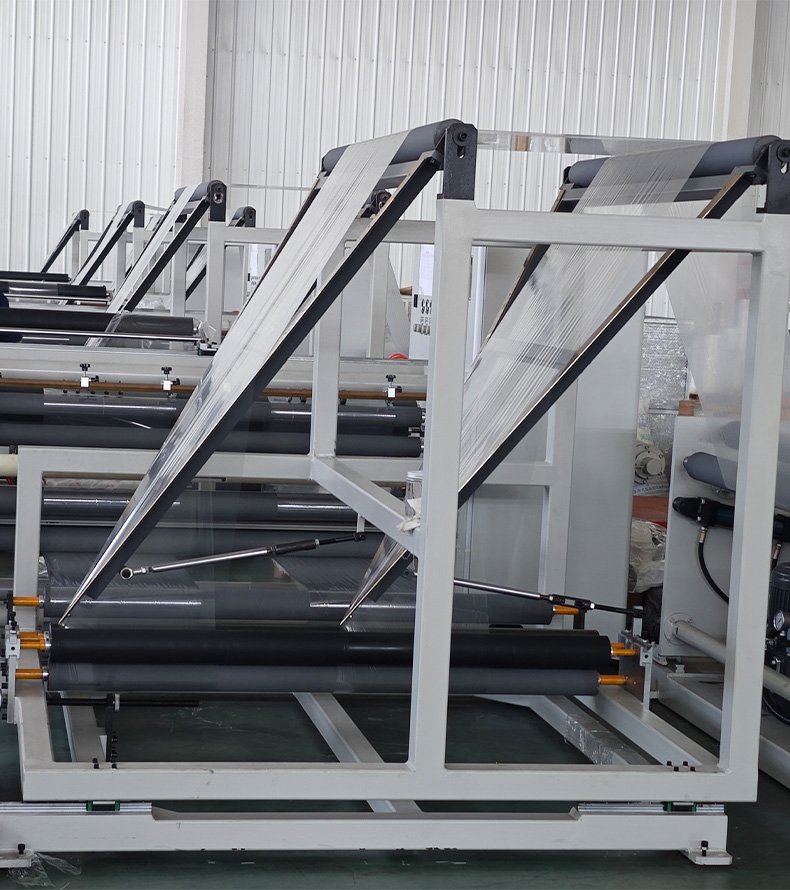

Width :200mm – 2200mm (Center Folded / Single Wound)

Shrinkage Ratio (MD/TD): Up to 75% / 70% (balanced)

Shrink Temperature :100°C – 170°C

Anti-fog Temperature Range :0°C – 10°C (refrigerated storage)

Clarity :>90%

Gloss :(45°) ≥120

Haze: <2.5% (for 19μm)

Certification :FDA, EU 10/2011, ISO9001

UP-AF Anti-fog Cross Linked Polyolefin Shrink Film
TEST ITEM		UNIT	ASTM TEST	TYPICAL VALUES
THICKNESS				40G	48G	60G	75G	100G
Tensile strength (MD)		N/mm²	D882	125	120	115	110	106
Tensile strength (TD)		N/mm²		120	115	110	115	110
Elongation(MD)		%		125	130	120	125	120
Elongation(TD)		%		120	125	110	130	135
Tear (MD)		g	D1922	12.0	15.0	11.0	26.0	34.0
Tear (TD)		g	D1922	11.0	13.5	10.0	25.0	32.0
SEAL strength(MD)		N/mm	F88	1.10	1.15	1.10	1.45	1.75
SEAL strength(TD) /HOT WIRE SEAL		N/mm	F88	1.16	1.18	1.00	1.65	1.80
COF Dynamic (Film to film)			D1894	0.23	0.20	0.31	0.25	0.25
COF Static			D1894	0.25	0.21	0.30	0.27	0.25
Haze			D1003	2.30	2.60	3.80	3.80	4.20
Clarity			D1746	98.0	99.0	95.5	98.0	96.0
Gloss @ 45deg			D2457	86.0	88.0	88.0	87.0	86.0
Antifog arrival time at 5℃				2 hours
Antifog Effect				Complete transparent,no visible water
Oxygen Transmission Rate		cc/m³/day	D3985	10500.0	9800.0	8700.0	6200.0	4200.0
Water Vaper Transmission Rate		gm/m³/day	F1249	35.0	31.0	28.0	21.0	17.0
Free Shrinkage				MD			TD
	100℃	%	D2732		21.00			25.00
	110℃				38.00			43.00
	120℃				62.00			66.00
	130℃				81.00			79.00
Shrink Tension		Mpa	D2838	MD			TD
	100℃				2.20			2.60
	110℃				2.70			3.30
	120℃				3.30			3.80
	130℃				3.10			3.60
Storage conditions required : Below 30 degrees Celsius, no direct sunlight.
Maximum storage time: 12 months.
